Toshiba RT-S983 aka WX-1

[fyj2972]

I am working on this monster now and would like to share some information with you guys, Hope it helps.
This units has 2 decks , each dech require 2 belts, They are FBS 10.0-10.2 , SCQ5.1


This particular model was not listed on PRB reference book



[Radio raheem]

Litfan once said these were easy to work on, had 2 myself, looks a bloody nightmare Frank



[fyj2972]

Yeah， Its insane.
I feel so sorry Litfan passed away and still remember those old days we were having fun at S2G.



[Radio raheem]

Yeah， Its insane.
I feel so sorry Litfan passed away and still remember those old days we were having fun at S2G.

yea it hit me quite hard frank, those were the good ol days mate i have one of Litfans boxes a sony F40, you once helped me fix my first m90, used to be on there as Rimmer36

nice to see you back dude God bless Reno



[fyj2972]

Update: Deck A , Deck B service complete.

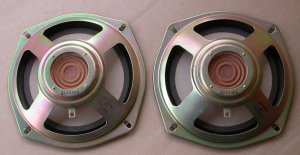

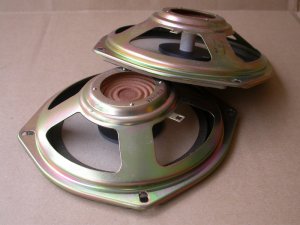

I will dump those 2 passive radiator . And switch them o AIWA 160mm ( made by Panasonic) woofers.



[docs]

I really like the look with those passive radiators, it would be a shame to lose the originality.



[Reli]

What are the original passives made of? Plastic, paper, or.....?
Would be nice to re-whiten them somehow.



[fyj2972]

Foam edge ,Paper cone and metal frame.



[Radio raheem]

frank are they the same size as the 880 passive radiator, i can't remember, if so i would like to buy them from you



[fyj2972]

Let me see if I still have another pair of black 160 mm passive radiators. A Black is better than white on a AIWA for sure.



[Radio raheem]

Let me see if I still have another pair of black 160 mm passive radiators. A Black is better than white on a AIWA for sure.

thank you Sir



[fyj2972]

I just check 880 service manual

Loudspeakers: 2 x 140mm, 2 x 50mm, 1 x 170mm

Center fake woofer is 170mm NOT 160mm.



[Radio raheem]

Damn that was quick, back to the drawing board i guess, thanks for checking my friend



[Reli]

White looks awesome, if it's true white, not that faded brown. Why not bleach them or paint them white, and then re-do the "Toshiba" label if you need to?



[Reli]

Those are good passives by the way, they have a spider suspension behind them, unlike the Aiwa passive which has nothing behind it.



[fyj2972]

Correction:
Belt size
Deck A : p/n 25755527 PRB FRW9.2 (main belt)
p/n 25755528 PRB SCQ 5.3 （ Belt，Center pully)
Deck B : same as deck A but add a counter belt, which Toshiba part number is 25755529 . PRB SCY 7.0



[fyj2972]

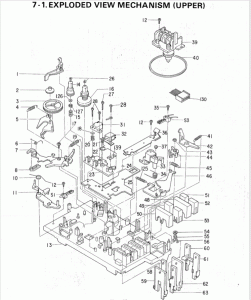

RT-S98/S983 Mechinism
