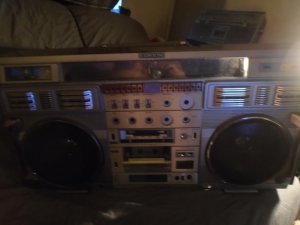

When i have my Conion put together the lower deck doesnt work. But when i open the box up and unscrew the deck it works????WTF
Conion C100-
- Thread starter FRizzo17
- Start date
- Status
Transistorized
Member (SA)
Yep. A common issue with these decks. I have run into it many times. I have photos on here showing what the culprit is. Its the metal sliding bars at the bottom of the deck. The red circles show the pins that prevent the keys from working when the slide bar is in the wrong position. Those opposing springs at the bottom right of the picture are supposed to center the slide bar. That gold colored slide bar is supposed to move freely back and forth. If it sticks, you are going to have problems. Also the green circle shows the position of the solenoid shut off lever. When put together, if this isn't lined up correctly it will cause binding.
[sharedmedia=core:attachments:38754]
[sharedmedia=core:attachments:38754]

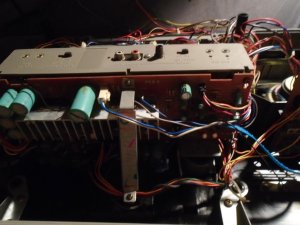

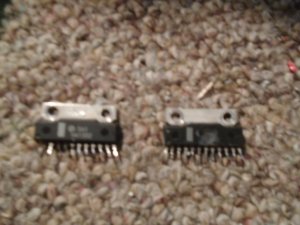

Hey thanks for the info. I think i just made matters worse. I tried to replace a leaf switch on the lower deck and i saw smoke coming from the pcb 2 board and saw that one of the amp chips burned up. After changing the amp chips i still dont get any music, nothings working now, just a loud humming sound when power is pushed. Is it possoble i burned something else up?
